FAN WALL ARRAY

High airflow precision cooling.

ac_unit	Cooling Capacity:	65KW to 289kw
fact_check	Best Fit Use Case:	SPACE-CONSTRAINED FACILITIES

HIGH AIRFLOW PERFORMANCE

Our latest Fan Wall Array delivers high-capacity thermal management for high-density data centres, providing airflow rates of up to 72,000 CMH.

Designed for integration into equipment corridors, the Fan Wall Array establishes hot and cold airflow paths that help maintain consistent cooling performance across demanding IT environments while supporting efficient airflow management.

VERTICAL DESIGN TO MAXIMIZE DENSITY

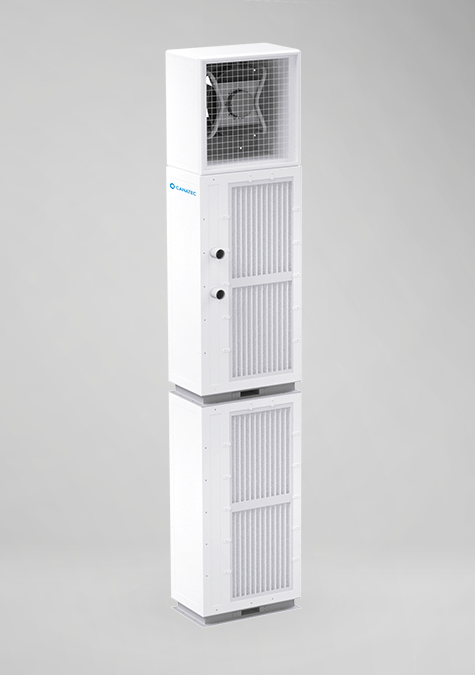

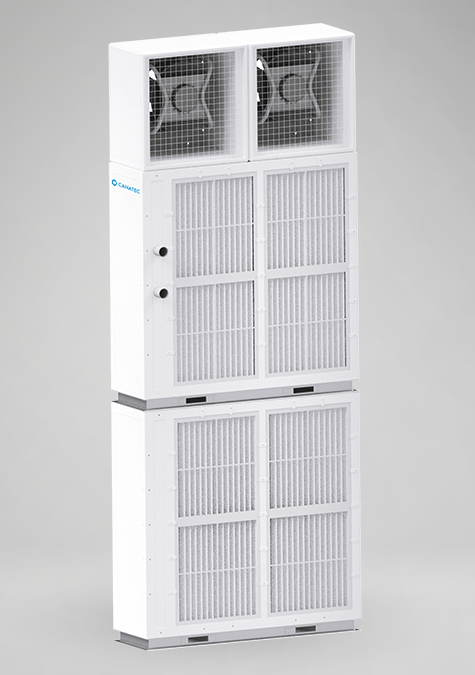

Available in multiple configurations, the Fan Wall Array reaches five metres in height to maximize cooling capacity while minimizing floor space. The vertical architecture also simplifies containment strategies and white space planning while enabling operators to deploy high airflow volumes within a compact equipment footprint.

Features & Specs north_east

Key components.

EC Fan

Modulates fan speed based on real-time demand and reduces energy consumption to as low as 0.16W/CMH through variable-speed operation.

Filter Panels

Ensures reliable qir quality, improving performance and longevity of equipment.

Smart Controller

Supports comprehensive monitoring function through intuitive controller operation and seamless BMS integration.

Optional Active Harmonic Filter

Maintains THDi below 5% at full load, for improved electrical efficiency and infrastructure protection.

Features & functions.

OPTIMISED AIRFLOW

Unique horizontal airflow technology reduces hotspots via uniform circulation.

air

INCREASED DENSITY

Compact physical footprint and can be arranged vertically without need for side clearance.

deployed_code

LOWER PUE, LOWER OPEX

Efficient operations lead to reduced power usage effectiveness (PUE), resulting in cost savings over time.

nest_eco_leaf

SPACE EFFICIENCY

The modular design of the Fan Wall Array maximises space usage, making it ideal for facilities with limited room.

high_density

SIMPLIFIED MAINTENANCE

Rear access to EC fans ensures easy servicing, minimising downtime and improving operational continuity.

build

RELIABLE PERFORMANCE

Filter panels maintain air quality and extend the lifespan of equipment, ensuring dependable performance in critical environments.
